Cisco 2691 and 3725 Modular Access Routers with AIM-VPN/EP II and Cisco 3745 Modular Access Router with AIM-VPN/HP II FIPS 140-2
OL-6084-01
The Cisco 2691, 3725 and 3745 Routers
Step 5
Place the fourth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that the half of the label covers the enclosure and the other half covers the bottom-left Network Module
slot. Any attempt to remove a network module will leave tamper evidence.
Step 6
Place the fifth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that the one half of the label covers the enclosure and the other half covers the top-right Network Module
slot. Any attempt to remove a network module will leave tamper evidence.
Step 7
Place the sixth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that the half of the label covers the enclosure and the other half covers the bottom-right Network Module
slot. Any attempt to remove a network module will leave tamper evidence.
Step 8
Place the seventh label on the router as shown in Figure 7. The tamper evidence label should be placed
so that one half of the label covers the enclosure and the other half covers the left WAN interface card
slot. Any attempt to remove a WAN interface card will leave tamper evidence.
Step 9
Place the eighth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that one half of the label covers the enclosure and the other half covers the middle WAN interface card
slot. Any attempt to remove a WAN interface card will leave tamper evidence.
Step 10
Place the ninth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that one half of the label covers the enclosure and the other half covers the right WAN interface card slot.
Any attempt to remove a WAN interface card will leave tamper evidence.
Step 11
Place the tenth label on the router as shown in Figure 7. The tamper evidence label should be placed so
that one half of the label covers the enclosure and the other half covers the Compact Flash slot. Any
attempt to remove a CF card will leave tamper evidence.
Step 12
The labels completely cure within five minutes.

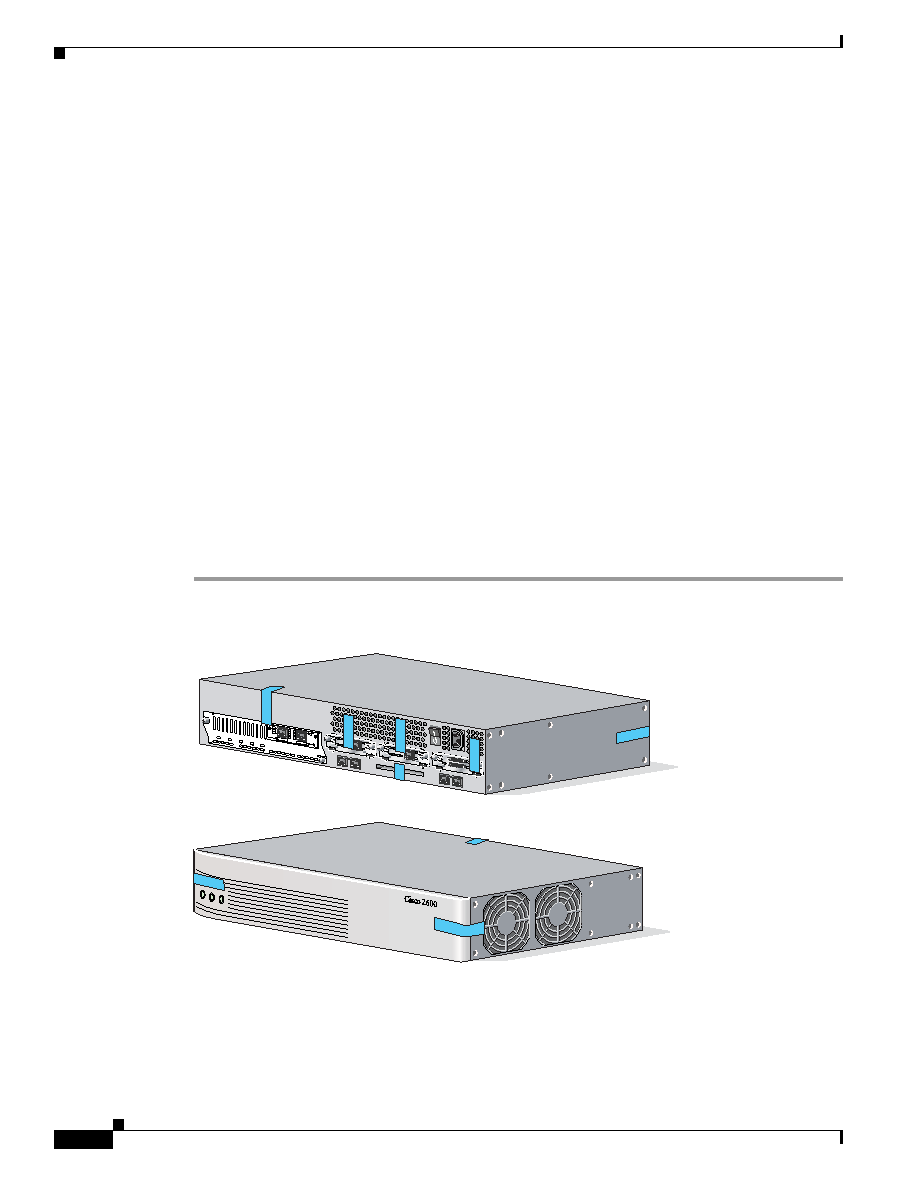

Figure 6
Cisco 2691 Tamper Evidence Label Placement
SEE MANU
AL BEFORE
INSTALLA
TION
AL
CD
LP
RD
TD
SEE MANU
AL BEFORE
INSTALLA
TION
DSU
56K
AL
CD
LP
RD
TD
SEE MANU
AL BEFORE
INSTALLA
TION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1 BANK
0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLA
TION
CTRLR
E2
CTRLR
E1
AL
LP
CD
SERIES
SERIES
99503
