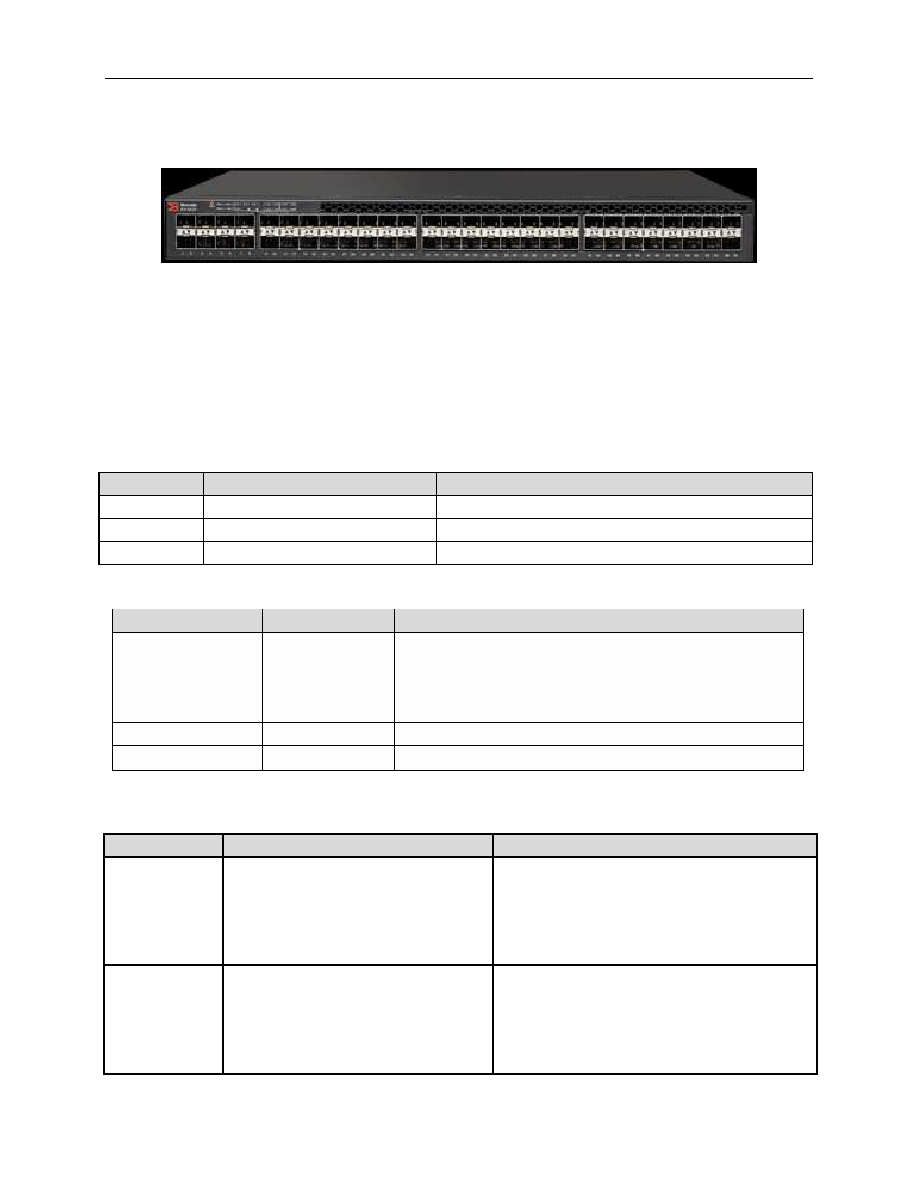

Figure 12 illustrates the ICX 6650 cryptographic modules (See Table 7 ICX 6650 Switch Family Part Numbers).
Figure 12 ICX 6650 cryptographic module
8
SX 800 and SX 1600 Series
Each FI-SX800-S, FI-SX1600-AC and FI-SX1600-DC device validated within this implementation includes the
following SX components: SX-FISF and SX-FIZMR-XL or SX-Fi-ZMR-XL-PREM6
Table 8 FastIron SX Part Numbers
SKU
MFG Part Number
BriefDescription
FI-SX800-S
80-1003050-03, 80-1007143-03
FastIron SX800 CHASSIS
FI-SX1600-AC
80-1002764-02, 80-1007137-02
FastIron SX1600, 16 slot, 2 SX-FISF, 2 AC Power Supplies
FI-SX1600-DC 80-1003005-02, 80-1007138-02
FastIron SX1600, 16 slot, 2 SX-FISF, 2 DC Power Supplies
Table 9 Components of the SX 800 and SX 1600
SKU
MFG Part Number
BriefDescription
SX-FISF
80-1002957-03
Switch Fabric module for the FI SX800 & FI SX1600
SX-FI-ZMR-XL
80-1006486-02
FastIron SX XL management module, No 10G ports
SX-FI-ZMR-XL-PREM6
80-1007350-02
FastIron SX XL management module, No 10G ports, support for
IPv4 and IPv6 routing, SW-SX-FIL3U-6-IPV6 license
SX-ACPWR-SYS
80-1003883-02
FSX AC 90-240 VAC SYSTEM POWER SUPPLY
SX-DCPWR-SYS
80-1003886-02
FSX DC SYSTEM POWER SUPPLY
Table 10 Validated SX800 Series Configurations
Module
Configuration 1, SKUs (Count)
Configuration 2, SKUs (Count)
SX 800
(with AC power)
Base: FI-SX800-S*
Management module: SX-FI-ZMR-XL (2)
Switch Fabric: SX-FISF (2)
License: None
Power Supply: SX-ACPWR-SYS (1)
Base: FI-SX800-S
Management module: SX-FI-ZMR-XL-PREM6 (2)
Switch Fabric: SX-FISF (2)
License: SW-SX-FIL3U-6-IPV6
Power Supply: SX-ACPWR-SYS (1)
SX 800
(with DC power)
Base: FI-SX800-S*
Management module: SX-FI-ZMR-XL (2)
Switch Fabric: SX-FISF (2)
License: None
Power Supply: SX-DCPWR-SYS (1)
Base: FI-SX800-S
Management module: SX-FI-ZMR-XL-PREM6 (2)
Switch Fabric: SX-FISF (2)
License: SW-SX-FIL3U-6-IPV6
Power Supply: SX-DCPWR-SYS (1)
*Note: See Table 8 for MFG Part Numbers
