FIPS 1402 NonProprietary Security Policy: IBM Internet Security Systems Proventia GX Series Security
Appliances Version 4.3
Document Version 1.2
© IBM Internet Security Systems
Page 26 of 27
3.1.4.1 GX7412 and GX7800 Series
A total of seven tamper evidence labels are required and are included with the appliance. Application of
the tamper evidence labels is as follows:
1. Turn off and unplug the system.
2. Clean the enclosure before applying the tamper evidence labels.
3. Place Label #1 over the top/left side of the enclosure as shown in Figure 1 GX7412 and GX7800
Series Tamper Evidence Label Placement (Front and Sides)
4. Place Label #2 over the top/right side of the enclosure as shown in Figure 1 GX7412 and
GX7800 Series Tamper Evidence Label Placement (Front and Sides)
5. Place Label #3 over the top of the enclosure and the outer right fan baffle as shown in Figure 1
GX7412 and GX7800 Series Tamper Evidence Label Placement (Front and Sides)
6. Place Label #4 over the top of the enclosure and the outer left fan baffle as shown in Figure 1
GX7412 and GX7800 Series Tamper Evidence Label Placement (Front and Sides)
7. Place Label #5 over the power supplies and edge of chassis as shown in Figure 2 GX7412 and
GX7800 Series Tamper Evidence Label Placement (Rear and Top)
8. Place Labels #6 and #7 over removable hard drives as shown in Figure 1 GX7412 and GX7800
Series Tamper Evidence Label Placement (Front and Sides)

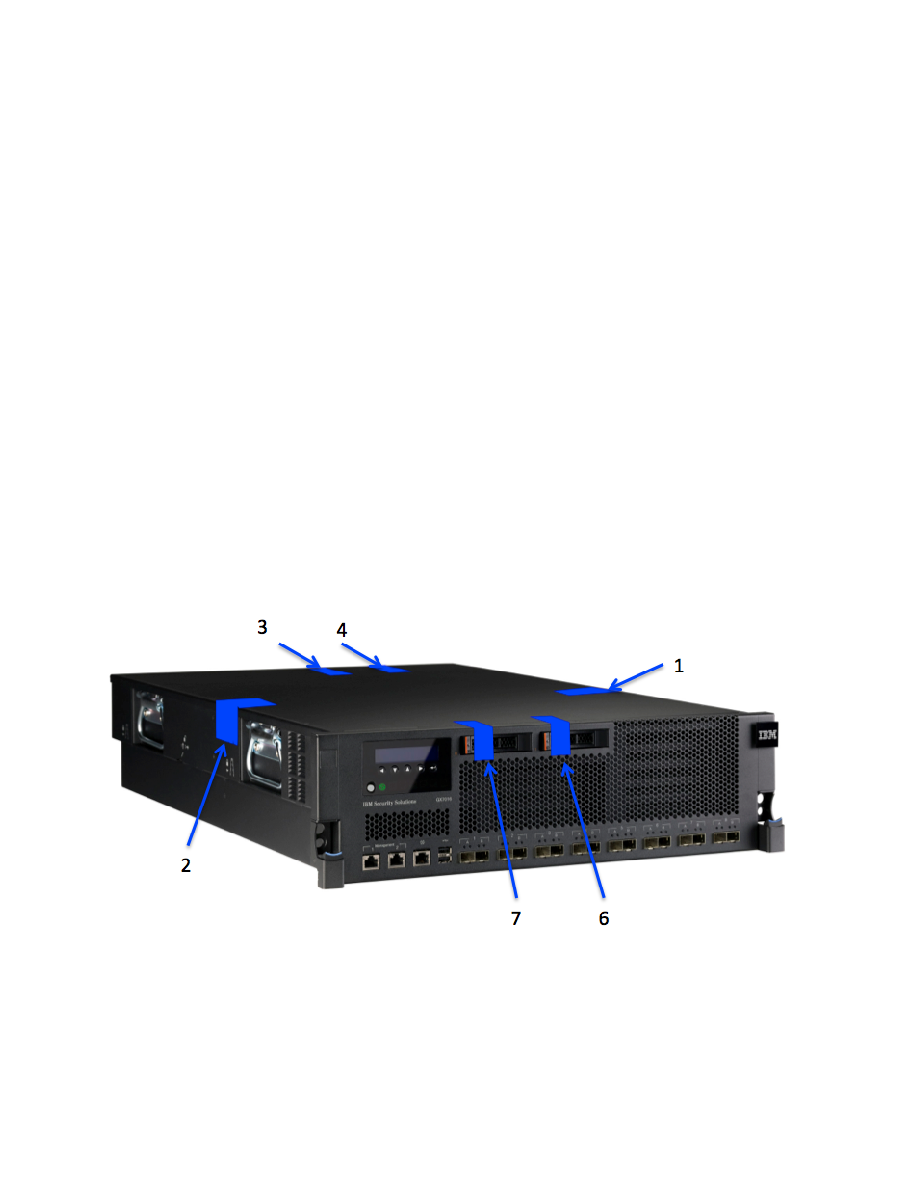

Figure 1 GX7412 and GX7800 Series Tamper Evidence Label Placement (Front and Sides)
