Module Description
FortiGate-200B/310B/620B FIPS 140-2 Security Policy
01-430-159494-20111219
7
http://docs.fortinet.com/ · Feedback
FortiGate-620B Module

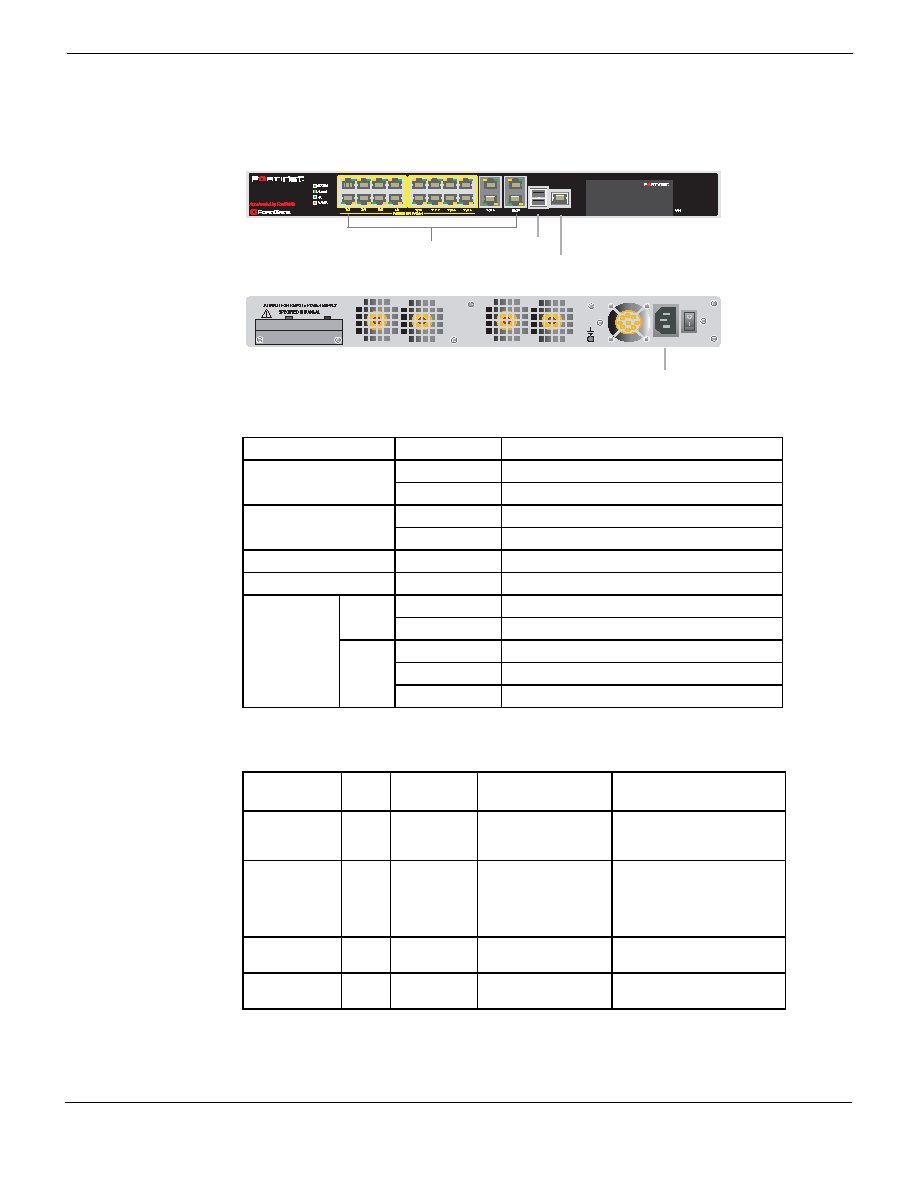

Figure 3: FortiGate-620B Front and Rear Panels
Table 6: FortiGate-620B Status LEDs
LED
State
Description
Power
Green
The module is powered on.
Off
The module is powered off.
Status
Flashing Green
The module is starting up.
Green
The module is running normally.
HA
Green
The module is part of an HA cluster.
Alarm
N/A
Future use.
Ports 1 to 20
Link
Green
Port is online.
Green blinking
Port is receiving or sending data.
Speed
Green
Connected at 1000 Mbps.
Amber
Connected at 100 Mbps.
Off
Connected at 10Mbps.
Table 7: FortiGate-620B Connectors and Ports
Connector
Type
Speed
Supported Logical
Interfaces
Description
Ports 1 to 20
RJ-45
10/100/1000
Base-T
Data input, data
output, control input
and status output
Connection to10/100/1000
networks.
Console Port
RJ-45
9600 bps
Control input, status
output
Optional connection to the
management computer.
Provides access to the
command line interface
(CLI).
USB Ports
USB
N/A
Key loading and
archiving
Optional USB token.
AC POWER
N/A
N/A
Power
120/240VAC power
connection.
CONSOLE
USB
620B
Ports 1 to 20
Console
USB
AC Power
